Optically Aided Autonomous Landing of Aircraft

Safe landing even in poor visibility conditions
The autopilot in aircraft navigates using GPS signals as standard. However, the system is susceptible to measurement errors, for example due to atmospheric disturbances. In addition, measurement errors cannot always be reliably detected. To ensure a safe landing, pilots must therefore continue to take control themselves from an altitude of 60 metres.

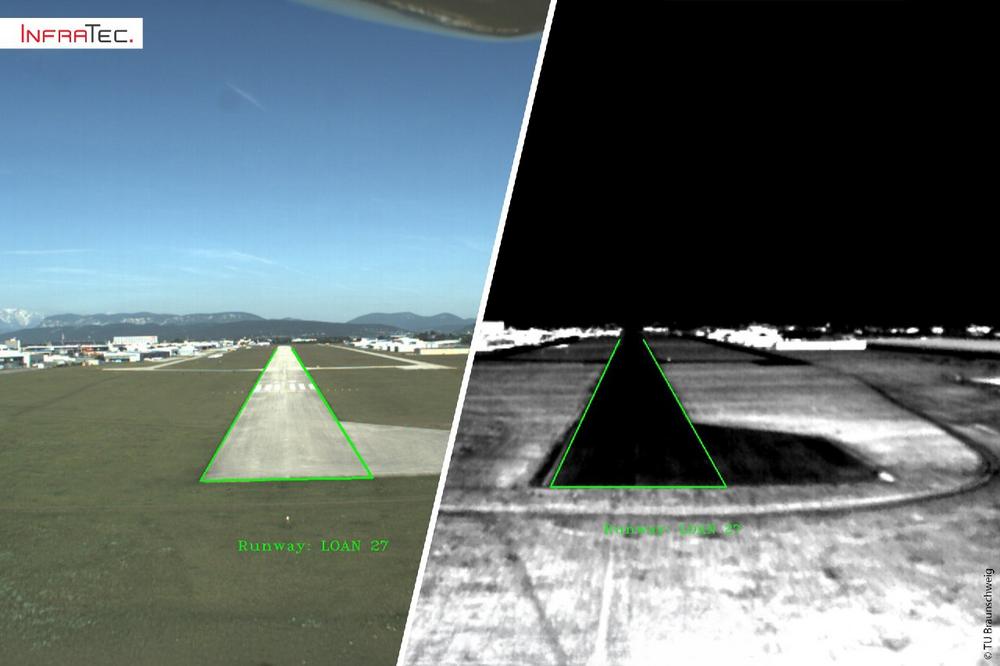

The aim of the scientists at TU Braunschweig, together with other project partners, was to enable fully automatic landing of eVTOLs (electrically powered aircraft that can take off and land vertically) and fixed-wing aircraft. They wanted to reliably detect runway features such as sidelines and thresholds and use them to determine the relative position of the aircraft. The VarioCAM® HD head thermographic system from InfraTec complements the RGB camera, which is often ‘blind’ in poor visibility conditions such as haze, twilight, or backlighting.

A particular challenge for the scientists was that the analyses had to be carried out under real-life conditions, that is, under very harsh and dynamic conditions. The aircraft’s movements and accelerations, as well as widely varying measurement distances and environmental factors, placed high demands on the optical reference system, that had to be developed.

Precise synchronization of IR measurement and image data
The VarioCAM® HD head 620 with a 15 mm lens was used as the IR component. The robust system camera was chosen because its geometrical resolution of (640 x 480) IR pixels and high contrast, which results from its excellent thermal resolution, guarantee high positioning accuracy. Secondly, PPS triggering (PPS: Pulse per Second) allowed the camera’s measurement data to be provided with an accurate time stamp and thus reliably synchronized with other measurement and status data. Using a GigE interface, the image data generated by the VarioCAM® HD was exchanged directly with the processing system, processed by the image software, and recorded in a lossless compressed format.

Within the framework of the project, the researchers added several new functions to the software. These included synchronizing the data from both cameras with the GPS signals, calculating a virtual guidance beam for the landing approach, and flight control for different phases of the approach. The use of InfraTec’s infrared camera significantly increased the availability of measurement data, making autonomous landing safer.

Higher IR resolution as the key to the operational use of optical land systems
The C2Land project, administered by DLR Space Administration, has now been successfully completed. Uncooled infrared cameras with higher geometrical and thermal resolution are now available, such as the VarioCAM® HD head 920 with (1,024 x 768) IR pixels. “This significantly advances us toward the practical use of an optical landing system. Our analyses have demonstrated the technical feasibility of an optical automatic landing system for the new class of eVTOL aircraft and for fixed-wing aircraft,” explains project manager Finn Hübner. “The new infrared cameras from InfraTec with higher IR and thermal resolution enable more robust detection from distances that were never thought possible."
