No Interruptions due to Power Failure in Low Voltage Grids

Standard  VDE-AR-N 4105 covers systems which are directly connected to grid: photovoltaic systems, CHP plants (combined heat and power units), wind and hydro power generation units, Stirling generators, fuel cells and asynchronous generators. It applies to generators with a total maximum active power (Ʃ PAmax) of up to 135 kW, independent of the network LV or MV voltage levels

The latest VDE-AR-N 4105: 2018-11 defines the dynamic grid stabilization. The network stability or isolation from the grid must also be secured if any voltage sags or peaks should occur.

Providing the input voltage is within the parameters of the generating unit or voltage storage, system disconnection must not occur in less than 3 seconds.

Equally in the event of any under voltage, coupling switches  must remain energized for three seconds to compensate for any power system events such as voltage transients.

As long as the input voltage is within the defined voltage range of the generating unit, or the storage, disconnection from the system grid must not occur.

SOLUTION:

Using the J Schneider, Online Dynamic Grid Stabilization (ODGS) the following generating and storage solutions are comfortably achieved as follows:

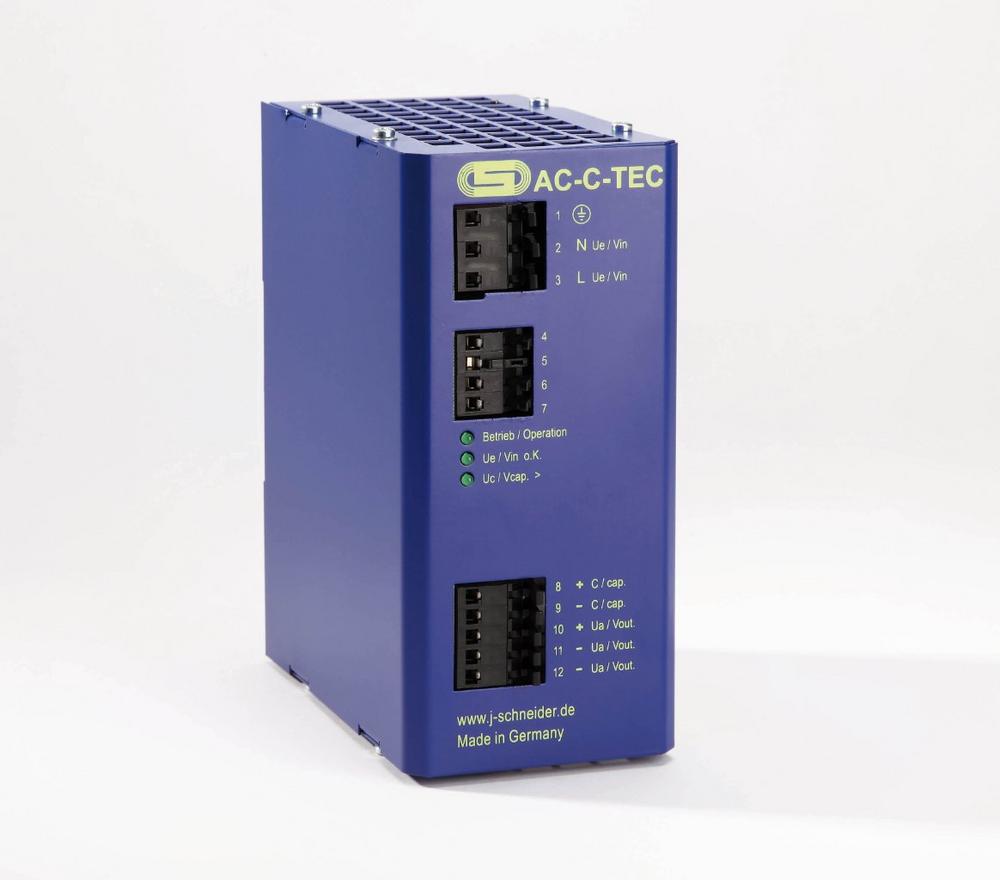

Avoidance of under voltage malfunctions, as “ONLINE” capacitor based a UPS system is employed to ensure the operation of coupling switches or contactors. This “Online” system ensures a continuous power supply without any potential interruption due to power failure. The unique and well proven J Schneider, Type AC C-TEC and C-TEC series devices are well acknowledged as the solution.

TECHNICAL DATA

The J Schneider Capacitor based UPS systems offer

Long life and maintenance-free operation thanks to durable ultra-capacitors

Type tested, operating temperature range from -40°C up to +60°C

Microcontroller-based charging and discharging of the ultra-capacitors

Operating and charge status monitoring via floating contacts and LEDs

Capacity easily expandable with use of external capacitor modules (CEM)

Energy range from 500 Joule through to 20 k Joule

Extensive product range ratings from 3 A DC up to 40 A DC

Input voltage 1 ph / 3 ph or 12 V DC / 24 V DC / 48 V DC

Output voltage 12 V DC / 24 V DC / 48 V DC
