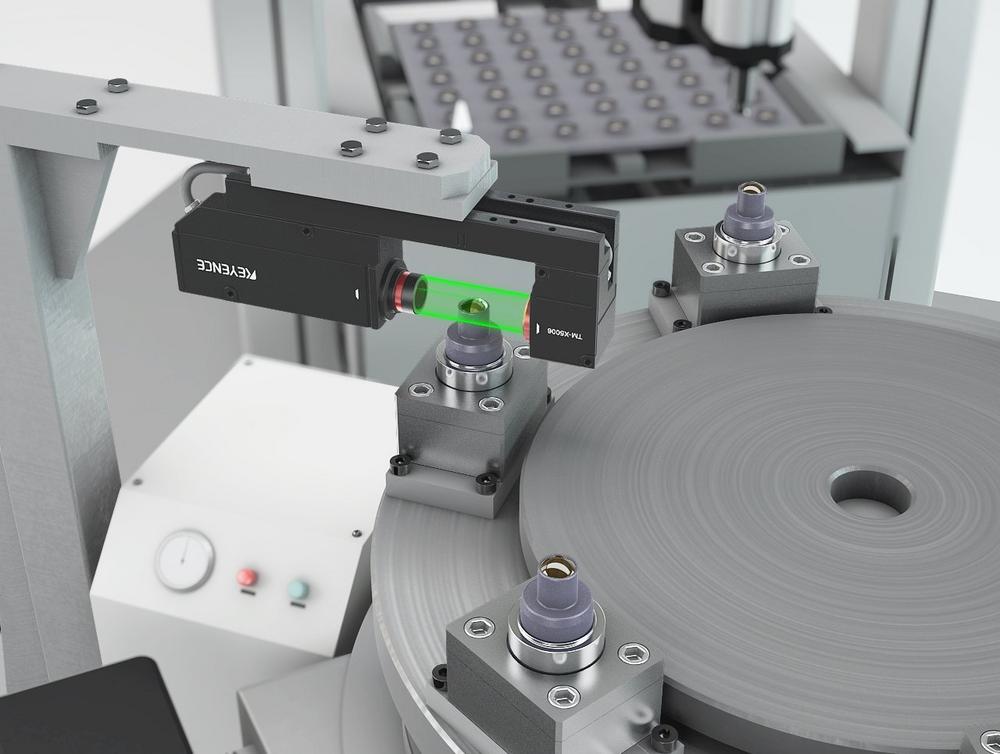

Designed specifically to measure parts rapidly and consistently as they pass through the system, the TMX5000 line-up boasts an exposure time of just 25 μs – 40 times faster than conventional models, allowing accurate measurement of high-speed targets by eliminating blur from the image.
It provides a versatile solution for a broad spectrum of industrial measurement applications, offering geometric dimensioning and tolerancing (GD&T); outer diameter and profile measurement; abnormality detection; and runout and positioning.
The specially designed telecentric optics greatly improve measurement repeatability by increasing uniformity throughout the field of view.
Compared with conventional telecentric optical systems, the TM-X5000 Series offers around 100 times greater telecentricity – just 0.0001°, ensuring confidence in results even for misaligned targets. The dual telecentric silhouette-based system provides exceptional stability while the large ±15 mm depth of field, based on telecentric lenses in both the transmitter and receiver, provides clear, sharp edges and stable measurement results, even where the target position may vary.
Users can select from two installation methods – with or without the included base. A handy optical alignment function enables rapid, simple installation, while the user interface features a wide variety of measurement tools, enabling intuitive configuration of settings.
The range consists of three models to cater for a wide variety of requirements: the compact, ultra-high accuracy TM-X5006; the standard TM-X5040 model; and the TM-X5065 fore wide field applications.
Richard De Courcy, Product Specialist, Keyence UK Vision and Measurement, explained: “Accurate
measurement of parts is vital to guaranteeing quality and consistency, and for identifying any possible production issues at the earliest possible opportunity. Our new portfolio harnesses the power of state-of-theart silhouette-based technology to deliver exceptional accuracy alongside ease of set-up and use, ensuring consistent, reliable measurement of a wide range of parts. This will bring peace of mind to manufacturers seeking to reassure their customer of the quality and consistency of their offering.”
For further information and to arrange a demonstration, visit www.keyence.co.uk/tmxrelease
As a leading supplier of sensors, safety equipment, measurement systems, laser markers, microscopes, and machine vision systems worldwide, KEYENCE is at the forefront of factory automation. We strive to develop innovative and reliable products to meet the needs of our customers in every manufacturing industry.
